Double Station Jerry Can Extrusion Blow Molding Machine 20L 25L 30L Stackable HDPE EBM

Product Categories
Suzhou Tongda Machinery Co., Ltd.
Contact Now

Double Station Jerry Can Extrusion Blow Molding Machine 20L 25L 30L Stackable HDPE EBM

Brand Name : TONGDA

Model Number : TONGDA HTll30L

Certification : CE, ISO9001

Place of Origin : JIANGSU, CHINA

MOQ : 1SET

Price : $79,999.00 - $94,999.00/Sets

Payment Terms : T/T, L/C, D/P, West Union

Supply Ability : 800sets/year

Delivery Time : 80 working days

Packaging Details : PE film, PE bag, Wooden Cases, Wooden Pallet, etc.

Dimension(L*W*H) : 6.3m*3.4m*3.9m

Clamping Force (kN) : 250

Screw L/D Ratio : 28

Screw diameter (mm) : 100 mm

Output (kg/h) : 230 kg/h

Air Pressure(MPa) : 0.6 MPa

Air Comsumption(m³/min) : 1.2 m³/min

Power (kW) : 141

Contact Now

Double Station 20L 25L 30L Jerry Can Extrusion Blow Molding Machine Stackable HDPE EBM
Product Description of HTII-30L
This is double station.This is suitable for making the 20L~30Lstacking product.The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements, we can provide customized services for you.
Technical Parameters of HTII-30L
MODEL Units HTII-30L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 30
Output of HDPE kg/h 400×2
Clamping force kn 250
Screw diametre mm 100 28:1
Screw heating power kw 26
Blow pressure mpa 0.6
Size of machine m 6.3×3.4×3.9

Product Details

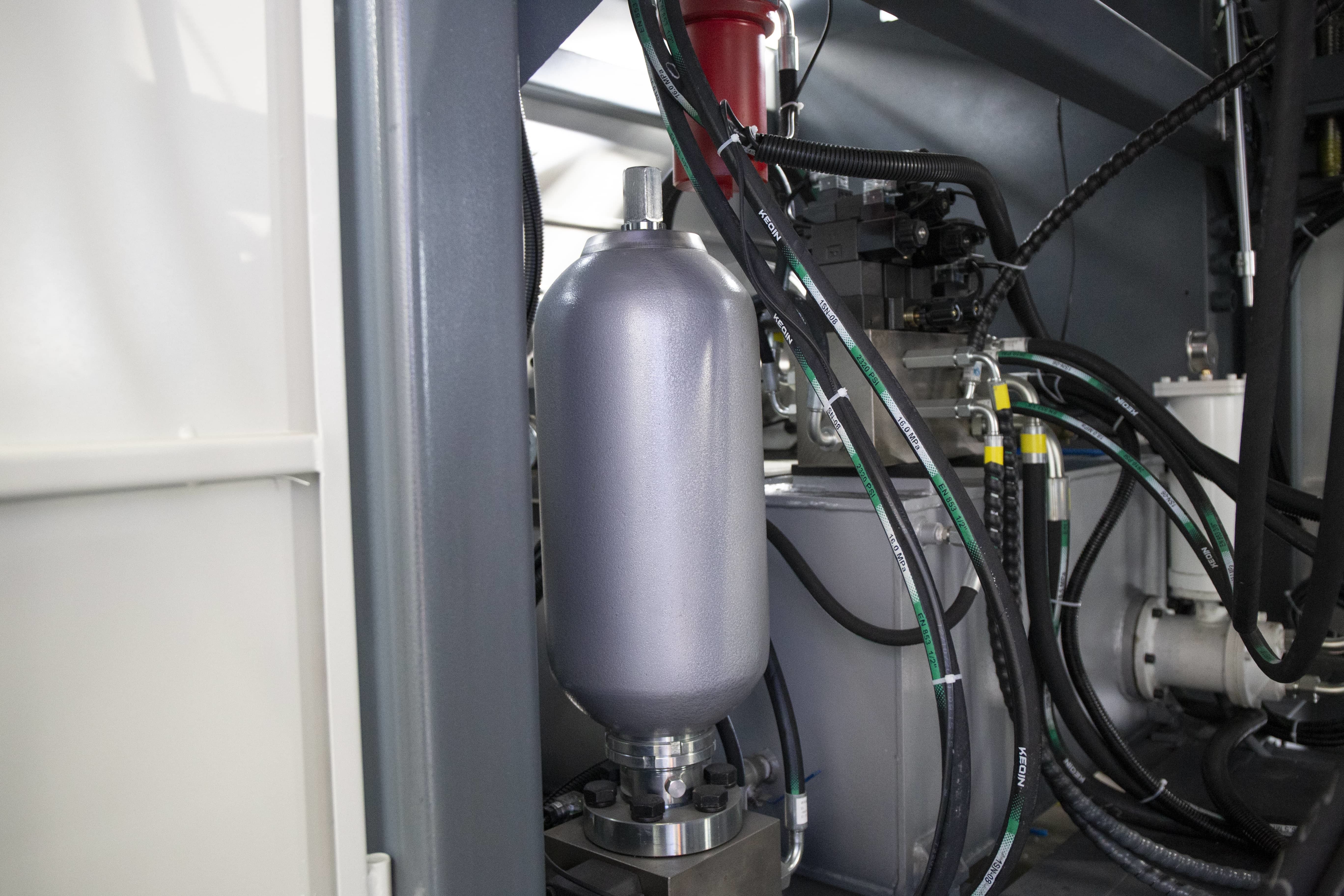

Energy acuumulator configuration save power energy instead of using a separate oil source and motor and save space.

Double Station Jerry Can Extrusion Blow Molding Machine 20L 25L 30L Stackable HDPE EBM

Large touch screen, equipped with Japanese moog 100 poinst Parison control, simpler operation and more perfect products

Double Station Jerry Can Extrusion Blow Molding Machine 20L 25L 30L Stackable HDPE EBM

Company Information
Our company has exported over 4000 units machine to more than 120 countries and regions, such as USA, UK, Australia, Greece,Poland.Russia,Belarus,South America, South Africa,Indonesia, Egypt, Syria, Ethiopia.We are not only providing our customers with high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.
Double Station Jerry Can Extrusion Blow Molding Machine 20L 25L 30L Stackable HDPE EBMDouble Station Jerry Can Extrusion Blow Molding Machine 20L 25L 30L Stackable HDPE EBM
Service Marketing Network

During epidemic period, our team have helped customers start up more than 250sets new Tongda machines by online service, to help customer run the machine as soon, our after sales team helped around 3 hours till the mid-night.

Double Station Jerry Can Extrusion Blow Molding Machine 20L 25L 30L Stackable HDPE EBM

FAQ

TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function


Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.


Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
